Terminal Line Pavilion V2 'The Web Pavilion' has been modified from the previous pavilion, with this modification i have remove the panels between the hexagon replacing with overlap pipes to provides an efficient roof structure with a series of anchor points creating a unique feature to the environment.

3DS Max Modified Precedent

The bending tool on 3DS MAX has allow me to explore variety of variations, i've have used two bending for this pavilion to give me an almost an birds-eye view for the facade for the end result.

The Tapering tool on 3DS MAX ables me to create fascinating angle facade for the final result

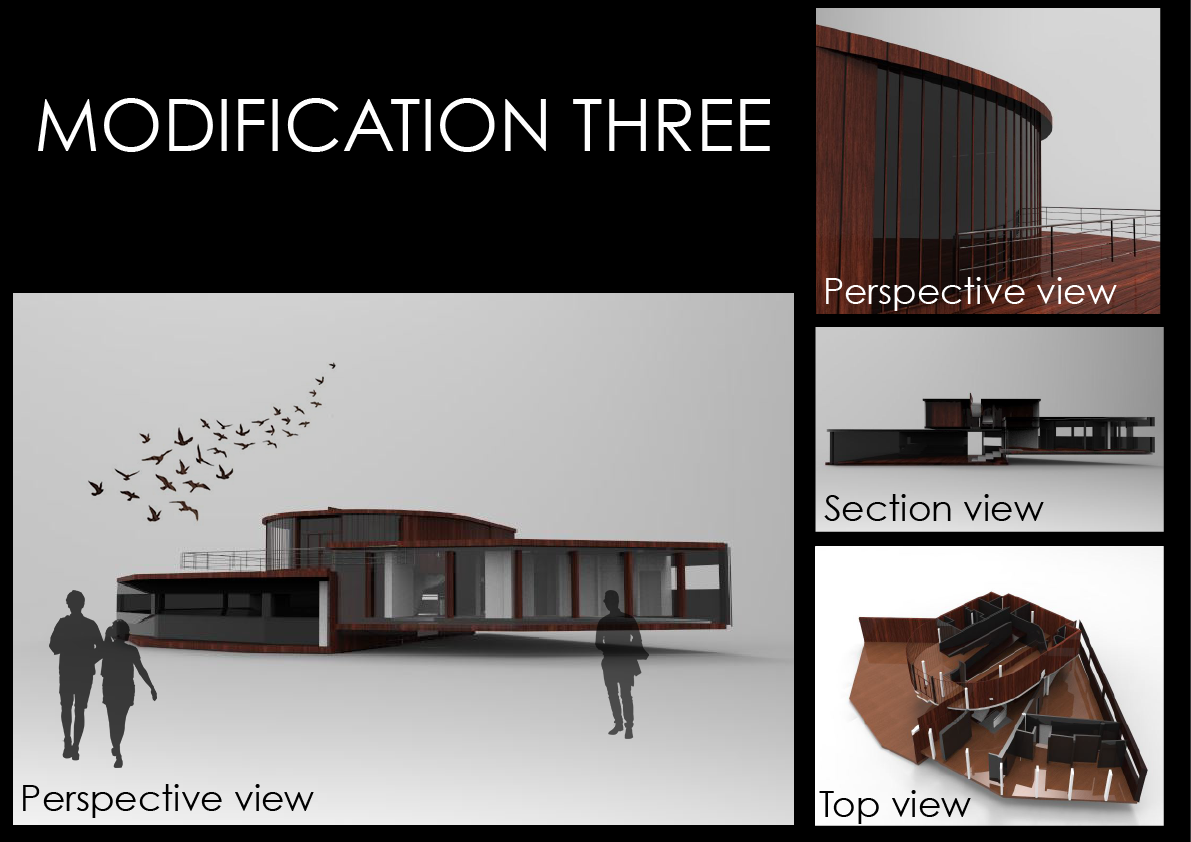

The third modification have created with a combinations of bending and slice tool on 3DS MAX, this modification was first slice the bottom half and in half of the original Villa Savoye. The two side was created with the used of bending too on Y axis to create a nice curvature facade to the building, the original bottom half of Villa Savoye was the place on top and in between the two. This modification gives a unique and modern Architectural style for the residence.
